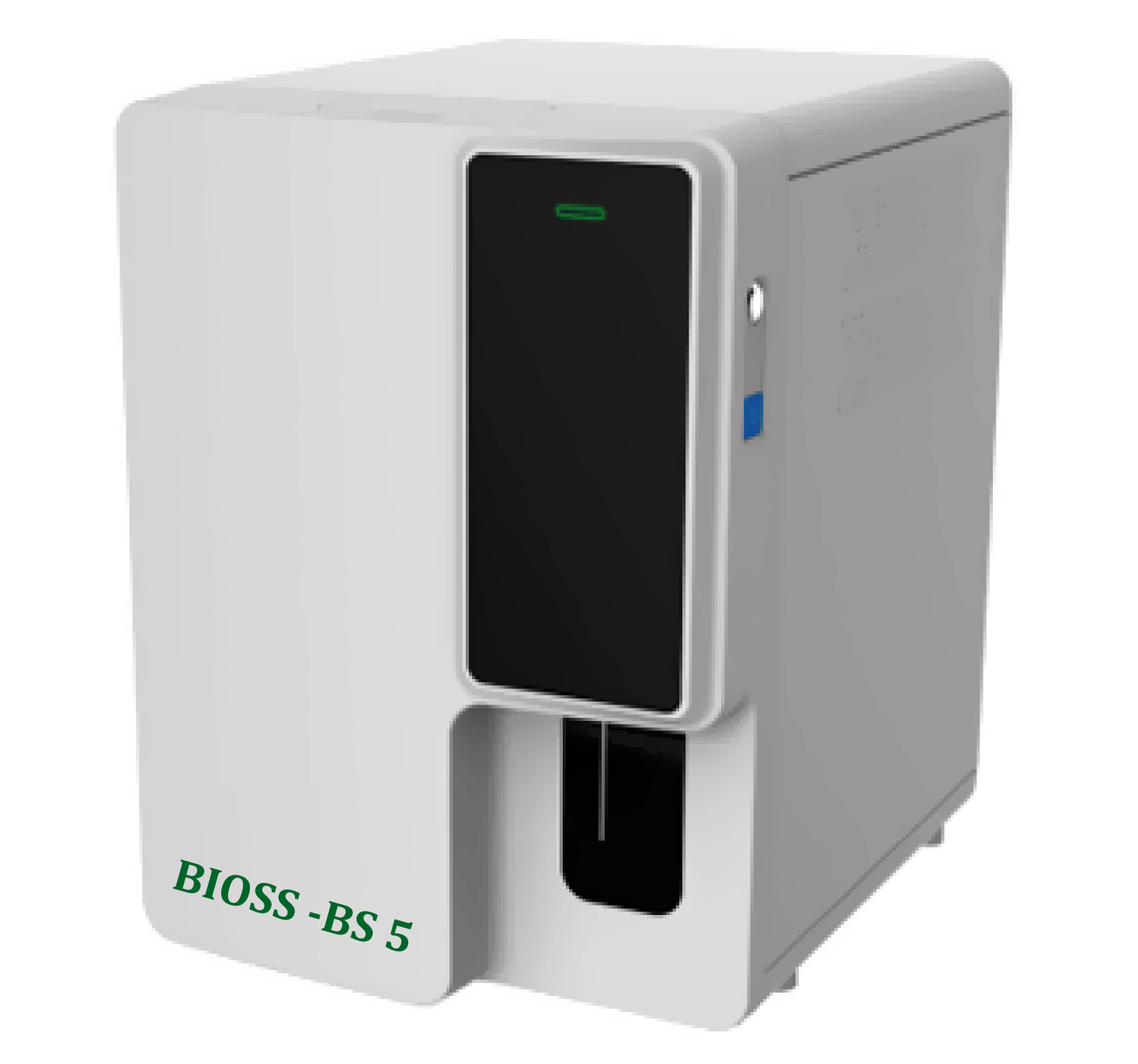

Bioss BS-5 is 5-Part Auto Hematology Analyzer The instrument can rapidly measure the WBC differential count with accurate test results. It can also output the 3D scatter gram clearly. The instrument is equipped with high-quality spare parts for reducing the failure ratio as well as built-in advanced data management System and abundant alarm Systems. + Professional and excellent clinical performance integrated in one machine 3D scatter gram Use the multi-angle laser scattering method to output the rotatable 3D scatter gram. The 5-part results are accurate. The identification of abnormal cells is more accurate. Multiple parameters abundant measurement parameters: Output various parameters after the completing of CBC and WBC differential count, providing more assistance for the clinical practice. Ultra-less blood consumption CBC and WBC differential count only require little blood, and are compatible with venous whole blood, capillary whole blood, pre-diluted blood and other blood sample mode. High-quality components Gem holes, syringes and other device parts are reliable and durable
60tests/hour
Tri- angle Laser scatter, chemical dye method, flow cytometry;
5-part differentiation, 29 parameters;
Compact, powerful and affordable;
3D scatter gram,3 2D scatter grams and 3 histograms;
Only 20ul sampling volume;
Up to 60 samples per hour;
3 counting modes: whole blood ,capillary blood and prediluted
Capability to flag abnormal samples
Large storage capacity: up to 100,000 samples.
Parameters
WBC, Lym%, Lym#,Mon%, Mon#,Neu%, Neu#,Eos%, Eos#, Bas%, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT,and 4 research parameters P-LCC , P-LCR, LIC%, LIC#, ALY%, ALY#
13D and 3 2D 3 scatter grams and 3 histograms
Throughput
Up to 60 samples per hour
Sample Volume
Whole Blood: 20ul
Prediluted: 20ul
Data Storage Capacity
Up to 100,000 results including numeric and graphical information
Operating Environment
Temperature: 150 C-300C
Humidity: 30-85%
Air Pressure: 70-106 kPa
Power Requirement
A.C. 100-240V ≤300VA 50/60Hz
Dimension and Weight
380mm(L) × 450mm(W) × 535mm(H)
Principles
Impedance method for WBC, RBC, PLT counting
Cyanide-free reagent for Hemoglobin test
Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye
method, independent Basophil channel
Test Mode
CBC CBC+DIFF
Performance
Carryover Repeatability Linearity
WBC ≤0.5% ≤2.0% (4-15×109/L) 0.00-300×109/L
RBC ≤0.5% ≤1.5% (3.5-6.0×1012/L) 0.00-8.5×1012/L
HGB ≤0.6% ≤1.5% (110-180g/L) 0-250g/L
PLT ≤1.0% ≤4.0% (150-500×109/L) 0.00-3000×109/L
