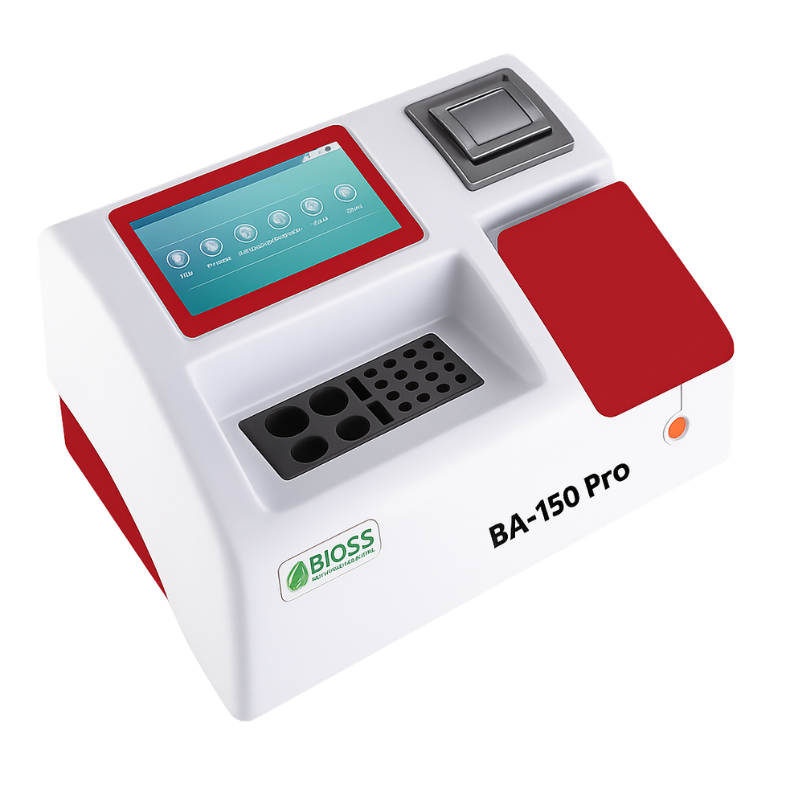

Semi-Automated Chemistry BA - 150 pro

Type: Clinical Chemistry

Overview

BA-150pro, true semi- automated clinical chemistry analyzer is a symbol of superior technology and convenience, designed to deliver high accuracy, quality results with least turnaround time and low maintenance.

Download PDF

* EMF (energy Matched filter)
* ERA Flow cell with Copper flow cell holder - Auto temperature maintenance
* Aspiration air gap and Auto Empty Function - No more worries on carry over
* Direct Access Key to the test menu
* ALD Function - Ensure extended life for the lamp & power saving
* Incomparable memory

Parameter
ALBUMIN
ALKALINE PHOSPHATASE
AMYLASE
BILIRUBIN DIRECT
BILIRUBIN TOTAL-TAB
CALCIUM (A)
CHLORIDE
CHOLESTEROL
CK NAC
CREATININE
GAMMA GT
GLUCOSE
HDL C DIRECT
LDH-P
LDL-C DIRECT
MAGNESIUM
PHOSPHOROUS
SGOT
SGPT
TOTAL PROTEIN
TRIGLYCERIDES
UREA U.V
URIC ACID
ALPHA 1 ACID GLYCOPROTEIN
MICROALBUMIN
ALBUMIN

Parameter

â€¢ Incubator: Multifunctional incubator.
â€¢ Test method: 1 Point end, 2 Point end, kinetics, Fixed-time, Turbidity.
â€¢ Test mode: Flow cell & Cuvette.
â€¢ Optics: 8 Standard wavelengths:- 340nm, 405nm, 450nm, 510nm, 546nm, 578nm, 600nm, 630nm. 2 more for optional.
â€¢ Lamp house: Long-life tungsten halogen lamp, auto-sleep function.
â€¢ Temperature: 25ËšC, 30ËšC, 37ËšC and incubator unit 37ËšC.
â€¢ Flow cell capacity & Optical path: 32Âµl, 10mm.
â€¢ Resolution: 0.0001 Abs.
â€¢ Photo-metric range: 0.0000-3.3000 Abs.
â€¢ Display: 7.0â€ TFT LCD with touch screen, 800*480 pixels.
â€¢ Printer: Build-in thermal printer (30mm printer paper), support external printer.
â€¢ CPU: ARM Cortex-A8, 800MHz; DDR3 SDRAM: 512MB Flash: 256MB.
â€¢ Memory: SD card: 8G.
â€¢ Interface: USBx4, Ethernet portsx1, RS232x1.

â€¢ Operational Environment: Temperature: 15ËšC ~ 35ËšC, Humidity: 35% ~ 85%.
â€¢ Power requirement: Wide power supply AC 100-240V, 50/60Hz.
â€¢ Dimension: 400*300*180mm (L*W*H).
