3 Part Electrolyte Analyzer

Type: Electrolyte Analyzer

Overview

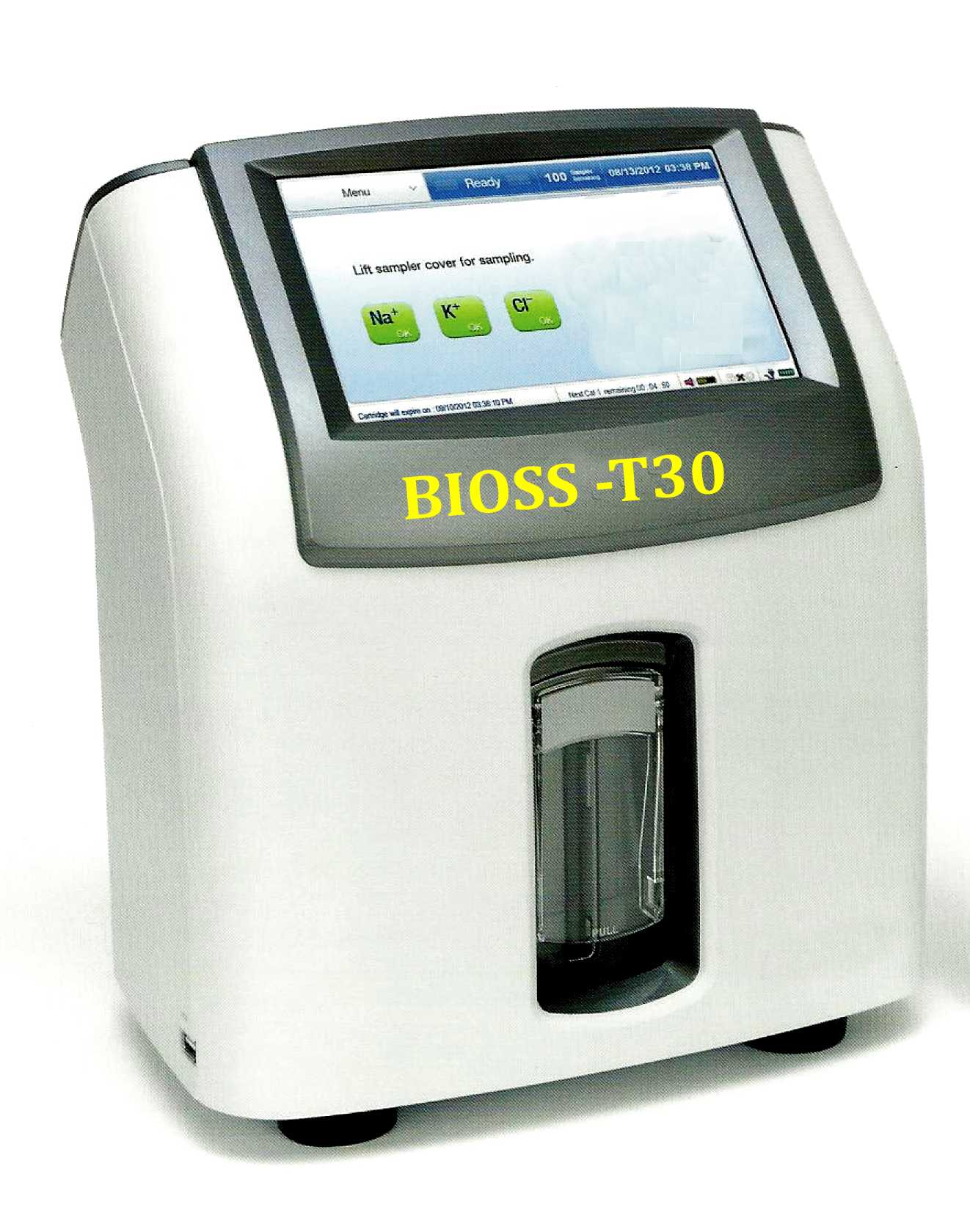

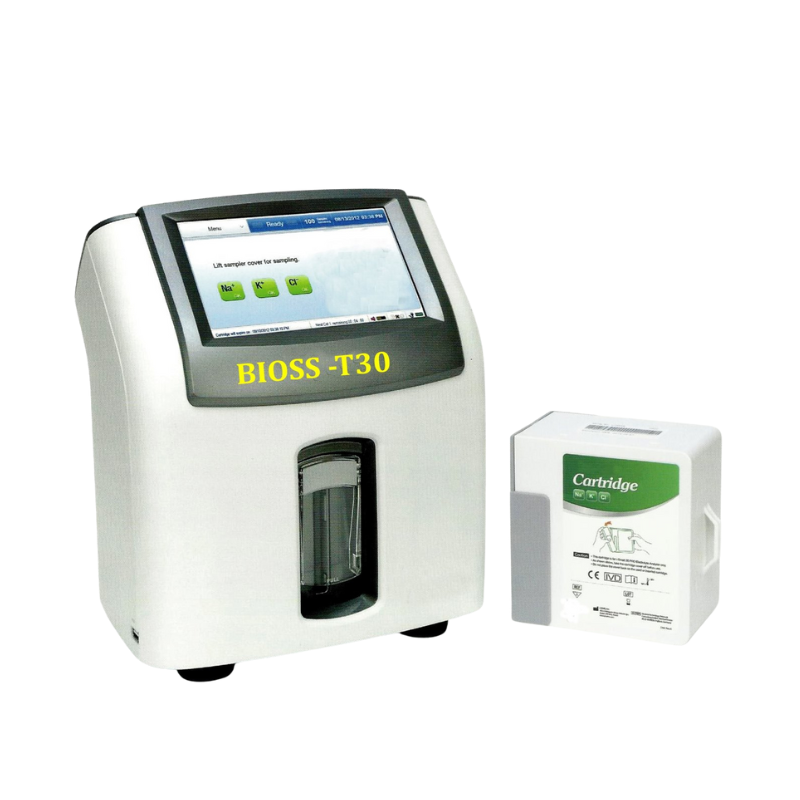

Bioss T-30 Electrolyte Analyzer is a semi - automated, microprocessor controlled electrolyte system that uses current ISE technology to make electrolyte measurements. The T-30 product measures various combinations of Sodium, Potassium, Chloride in whole blood, serum, plasma, CSF, body fluids and urine. Bioss T-30 Electrolyte Analyzer is specifically designed to meet the needs of small to medium-size laboratories using the latest ISE technology. Bioss Biotechnologyâ€™s Electrolyte Analyzers improve lab productivity while delivering sample results economically. Snap-in electrode design, combined with precise control of calibrator volumes; ensure economical operation and a low cost per sample in our Analyzers.

Download PDF

Fast and accurate electrolyte testing
Fast, accurate analysis
Test Na+, K+, Cl- and HCT
60Î¼l sample volume
Results in 60 seconds
300,000 test data storage

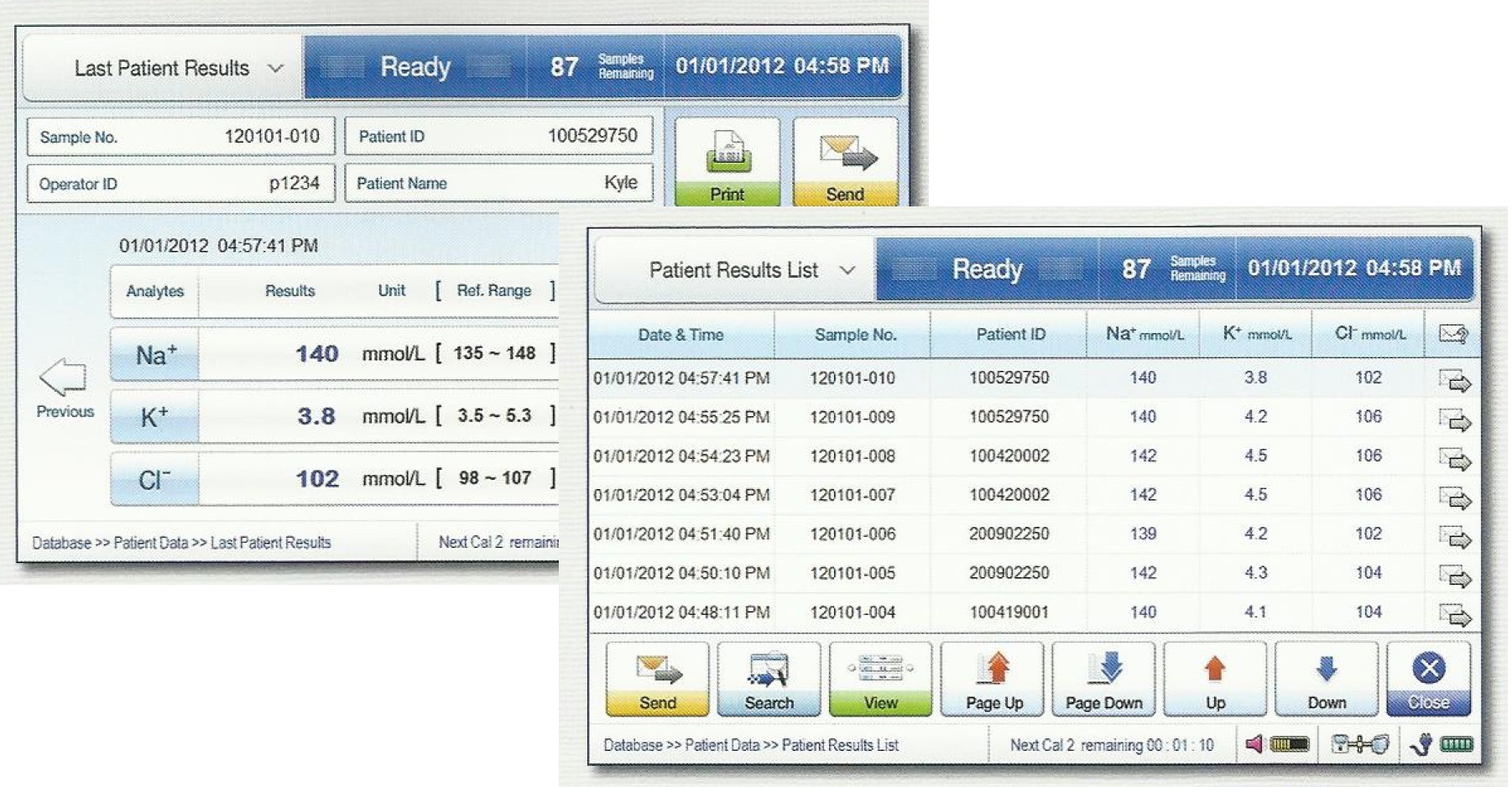

Large touch screen LCD
Battery or mains powered

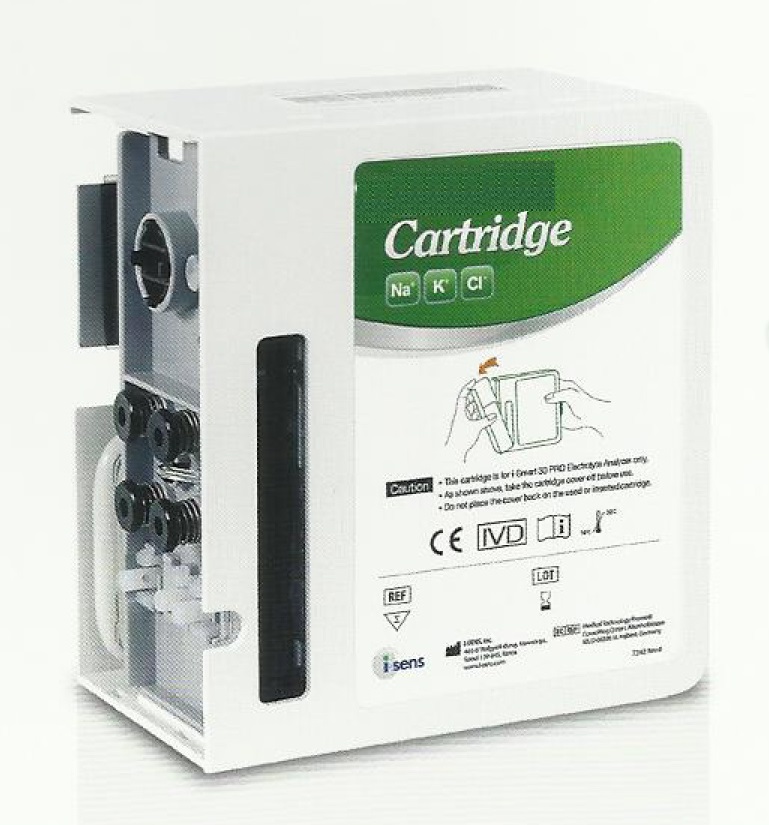

All-in-One Cartridge
No user maintenance
Autocalibration
Cartridge contains electrode and all consumables
Dimensions: 292 x 256 x 177mm
Weight: 5.5kg
Measured Parameters
Na+ 20 ~ 250mmol/L
K+ 0.5 ~ 20.0 mmol/L
Cl- 20 ~ 250 mmol/L
HCT 10 ~ 60%

Measured Parameters:
Parameter Â Â Â Unit Â Â Â Measuring range
Na+ Â Â Â Â Â Â Â Â Â Â nmol/L Â Â Â 20~25 Â
Â Â K+ Â Â Â Â Â Â Â Â Â Â Â Â Â mmol/L Â Â Â 0.5~20.0 Â Â Â
Cl- Â Â mmol/L Â Â Â 20~250 Â Â
Operating Parameters
Sample type: Â Â Whole blood, Plasma, Serum.
Sample volume: Â Â 60Âµl
Sample Introduction: Â Â Aspiration
Sample Container: Â Â Syringe, Capillary.
Time to analysis: Â Â 35 Seconds
Measuring method: Â Â Electrochemistry (Direct ISE)
Calibration: Â Â Automatic 1-2 Point calibration & Manual calibration is available if necessary

Temperature: Â Â 15~350C
Relative humidity: Â Â 5~85%
No of Sample: Â Â 100 samples/4 weeks
Onboard lifetime: Â Â 200 samples/4 weeks.
Storage temperature: Â Â 10~300 C.
Shelf life: Â Â 18 months
Voltage/ Frequency : Â Â 100~240VAC 50/60Hz.
Power adapter : Â Â AC-DC power supplies (output: Â±24VDC 2.7A,65W).
